Ehu Series High-end home decoration, enjoy a safe and protective home decoration experience
| 【Product Introduction】 |

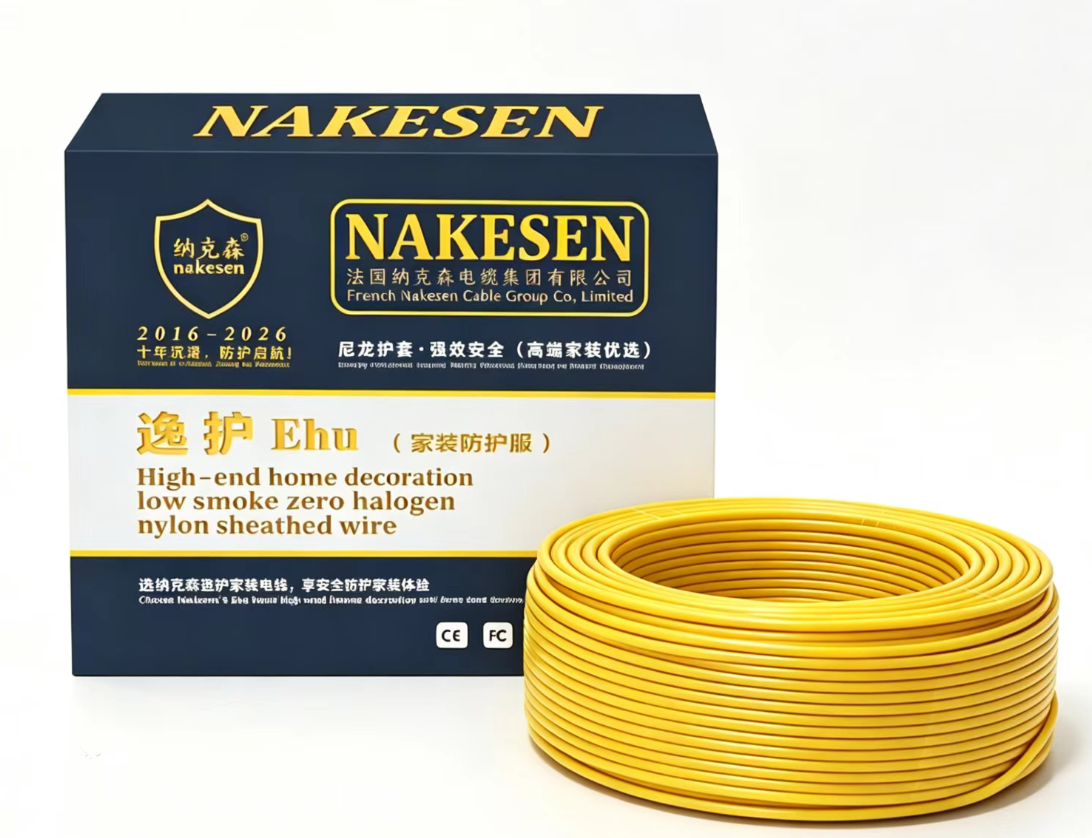

| The NAKESEN Ehu Series is aviation-grade nylon sheathed wire tailored for high-end home decoration. Combined with low-smoke zero-halogen polymer insulation and double-layer protective nylon sheath, it features excellent wear resistance, impact resistance and corrosion resistance. It delivers stable power supply and provides full-cycle safety protection for household electricity. |
| 【Product Parameters】 | 【Core Advantages】 |

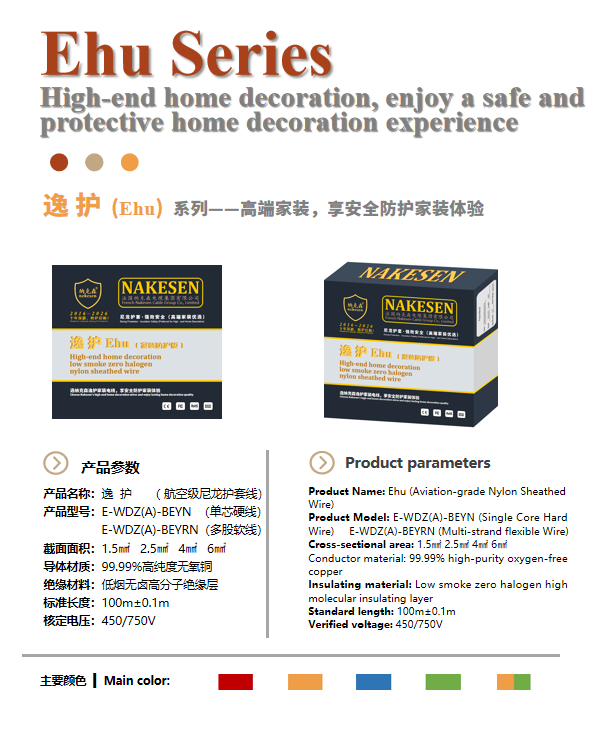

| - Product Name: Ehu Series (Aviation-Grade Nylon Sheathed Wire) - Product Model: E-WDZA-BEYN (Single-Core Hard Wire), E-WDZA-BEYRN (Multi-Strand Flexible Wire) - Cross-sectional Area: 1.5mm², 2.5mm², 4mm², 6mm² - Conductor Material: 99.99% High-Purity Oxygen-Free Copper - Insulation Material: Low-Smoke Zero-Halogen Polymer Insulation + Nylon Sheath - Standard Length: 100m±0.1m - Rated Voltage: 450/750V - Application Scenarios: High-end residences, villas, commercial spaces, basements and other humid, high-temperature or easily worn areas |

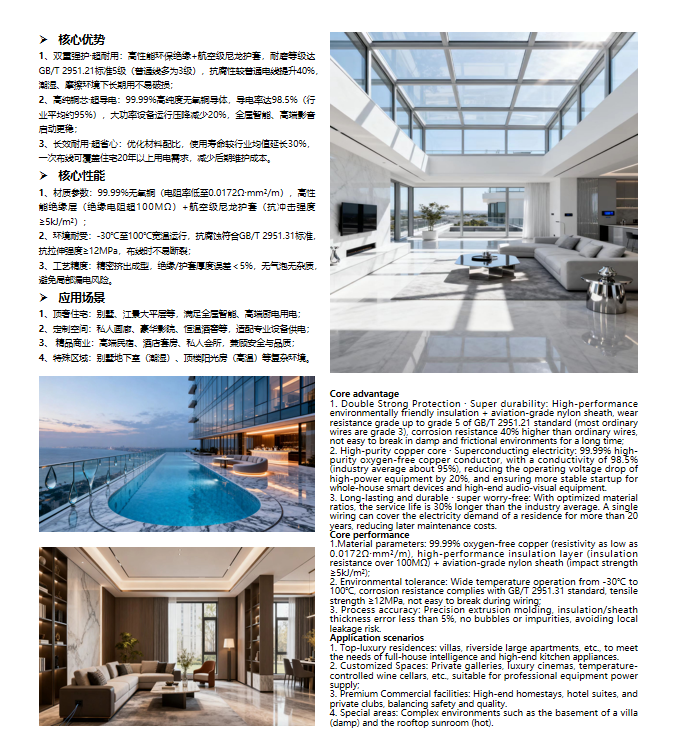

1. Dual Protection & High Durability：Equipped with high-grade nylon sheath and high-performance insulation, it reaches Grade 5 in accordance with GB/T 2951.21. Its impact resistance is increased by 40%. Wear and tear resistant, it stays intact even in harsh construction and usage conditions. 2. High-Purity Conductor & High Efficiency：Adopting 99.99% high-purity oxygen-free copper conductor with conductivity up to 99.5%, which is better than the industry average. It effectively reduces voltage drop and power loss, realizing energy-saving operation in long term. 3. Anti-Aging Design & 70-Year Service Life：With optimized anti-aging formula, the designed service life is up to 70 years, matching the service life of buildings. One-time installation serves the whole life cycle of the house and cuts subsequent maintenance costs greatly. 4. Wide Temperature Adaptation & Stable Performance：It operates steadily at temperatures ranging from -30℃ to 100℃ with outstanding anti-aging performance. The insulation and sheath have great moisture and weather resistance, free from the impact of temperature difference and humidity. |
